The Rotel A14MKII Integrated Amplifier

delivers 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.

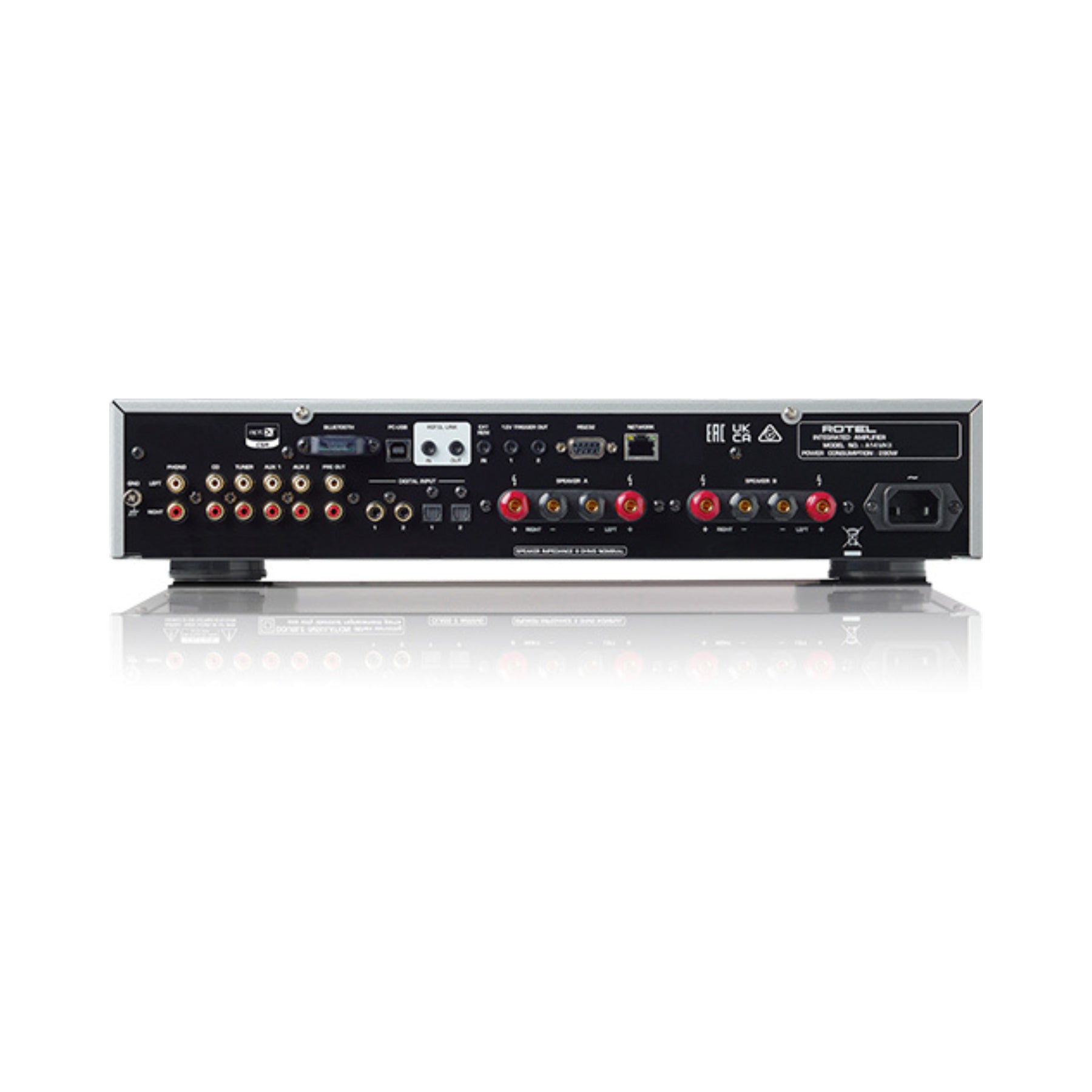

The A14MKII is certified  delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections.

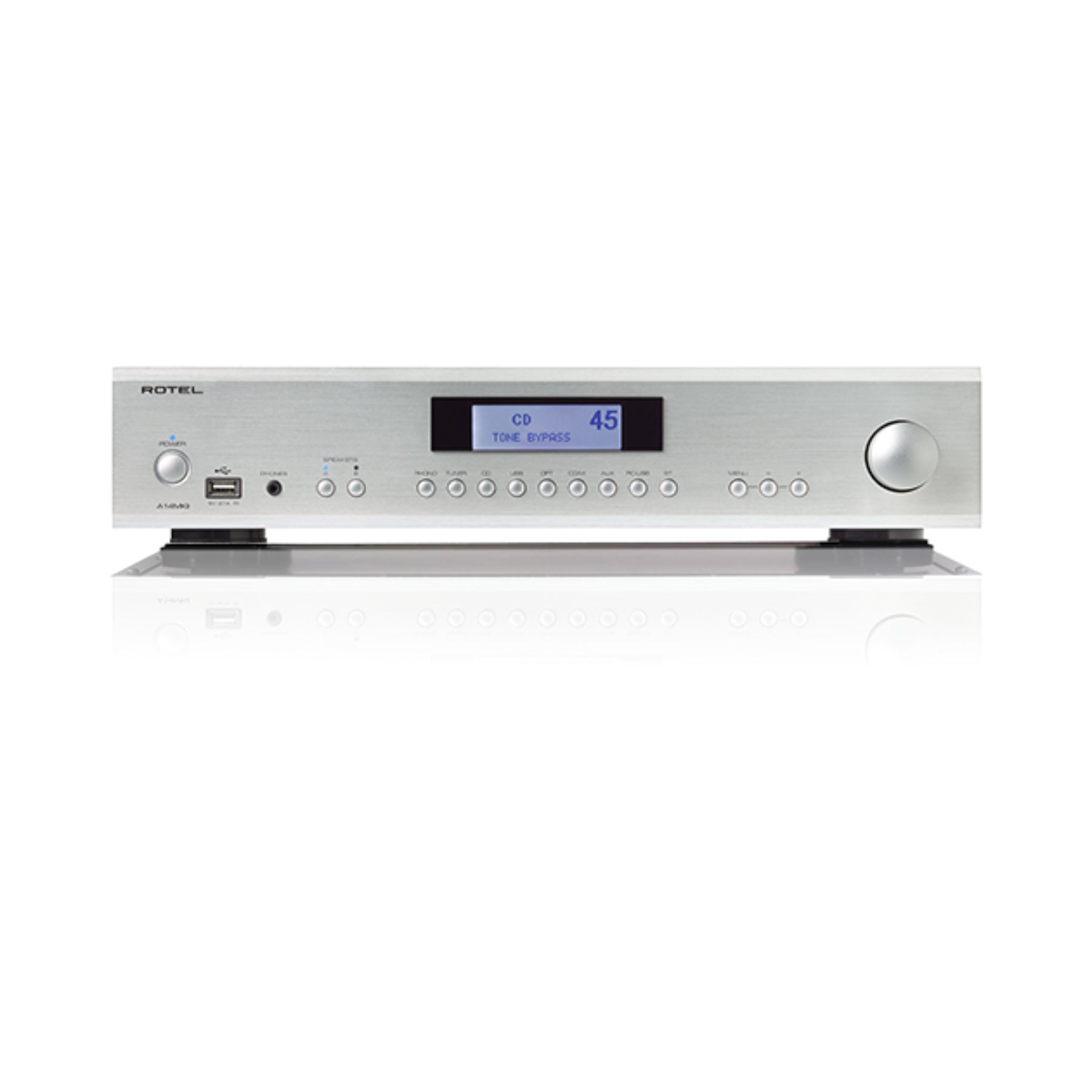

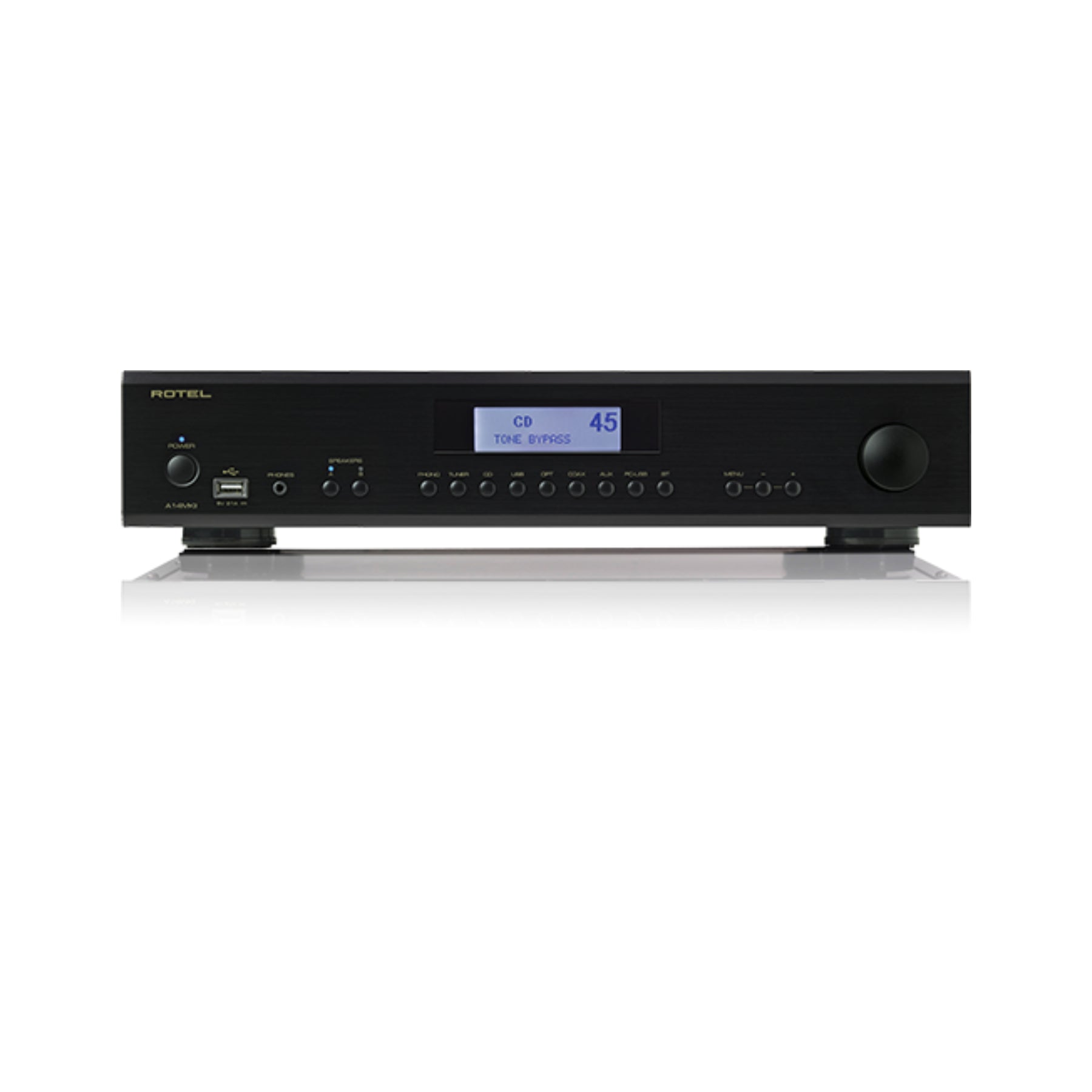

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

Rotel A14MKII Specifications:

CONTINUOUS POWER OUTPUT: 80W/Ch (8Ω)

MAXIMUM POWER OUTPUT: 150W/Ch (4Ω)

TOTAL HARMONIC DISTORTION (THD): <0.018%

FREQUENCY RESPONSE

Line Level Inputs:

10Hz - 100kHz, ±0.5dB

Digital Inputs:

10Hz - 90kHz, ±2.0dB, Max

Phono Input:

20Hz - 15kHz, ±0.5dB

S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 100dB

Digital Inputs: 103dB

Phono Input: 90dB

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.03%

DAMPING FACTOR: 220

INPUT SENSITIVITY

Line Level Inputs: 230mV

Digital Inputs: 0dBfs

Phono Input (MM): 3.4mV

INPUT IMPEDANCE

Line Level Inputs: 24kΩ

Digital Inputs: 75Ω

Phono Input (MM): 47kΩ

INPUT OVERLOAD

Line Level Inputs: 4V

Phono Input: 50mV

PREOUT LEVEL: 1.2V

OUTPUT IMPEDANCE: 470Ω

TONE CONTROLS: ±10dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS: SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB

USB Audio Class 1 (up to 24-bit/96kHz)

USB Audio Class 2 (up to 32-bit/384kHz)

*Driver installation required

MQA and MQA Studio (up to 24-bit/384kHz )

Roon Tested

DIMENSIONS (W × H × D): 17" × 3.6" × 13.5"

FRONT PANEL HEIGHT: 3.15"

POWER REQUIREMENTS: 120V, 60Hz

POWER CONSUMPTION: 280W

STANDBY POWER CONSUMPTION: <0.5W

NET WEIGHT: 19.7 lbs.
