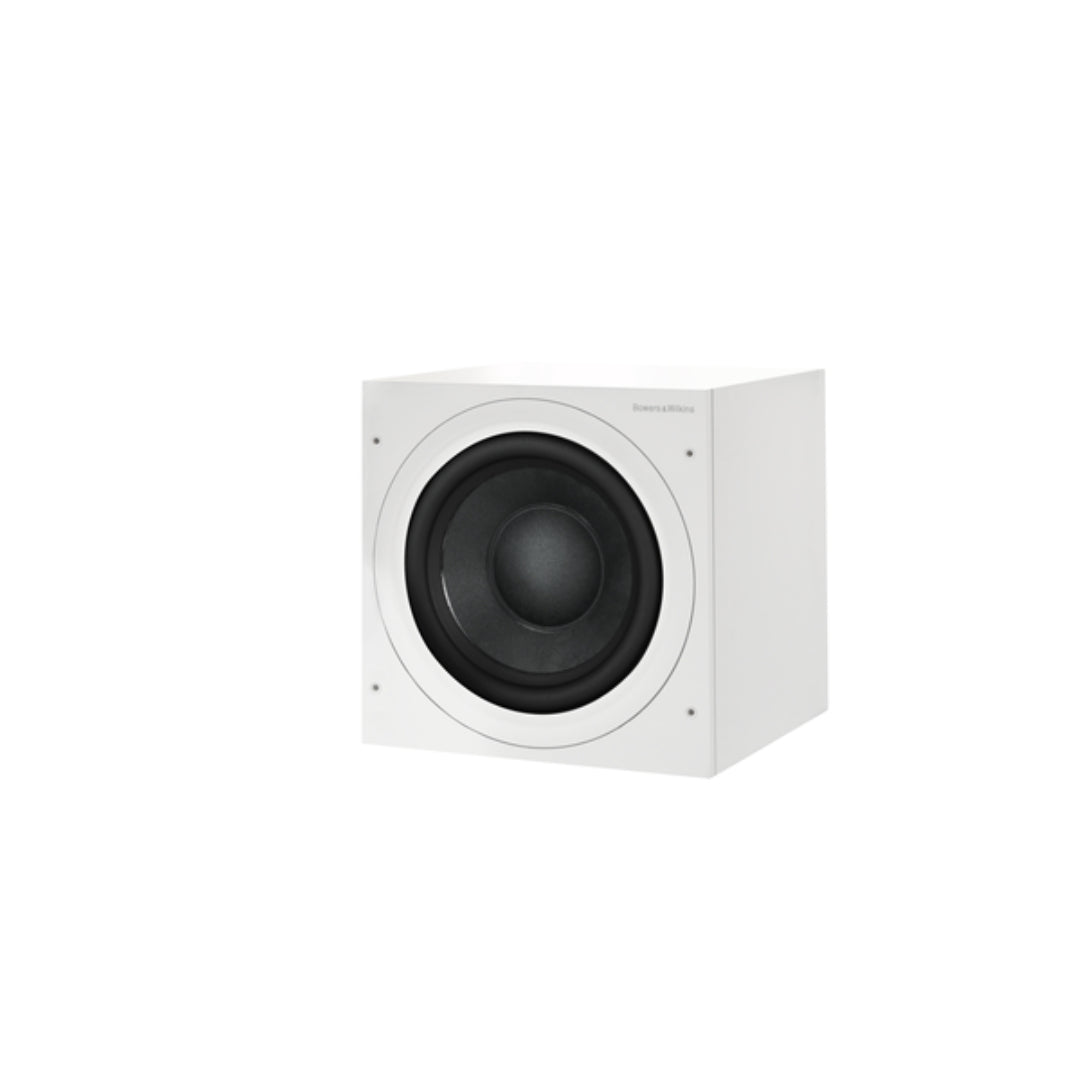

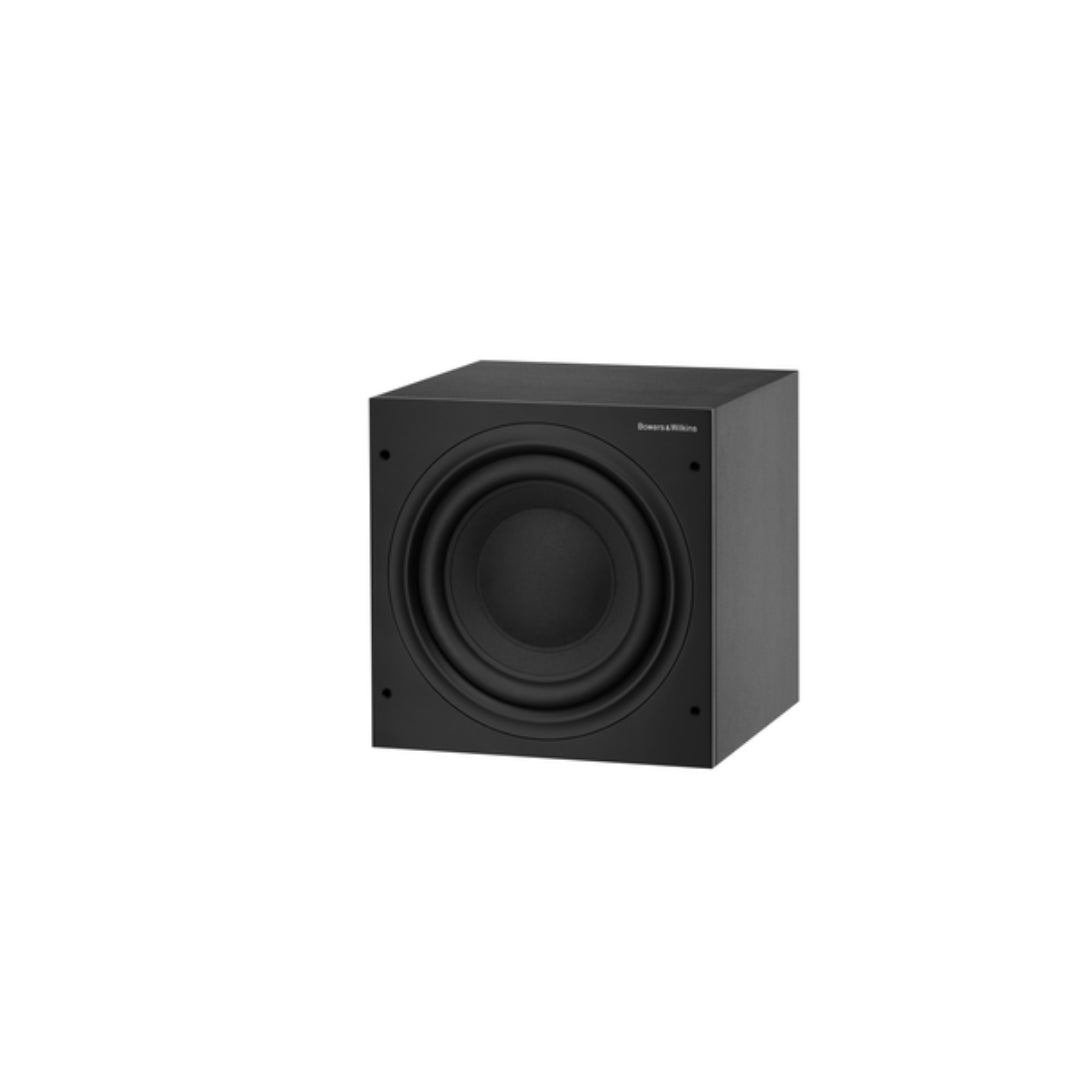

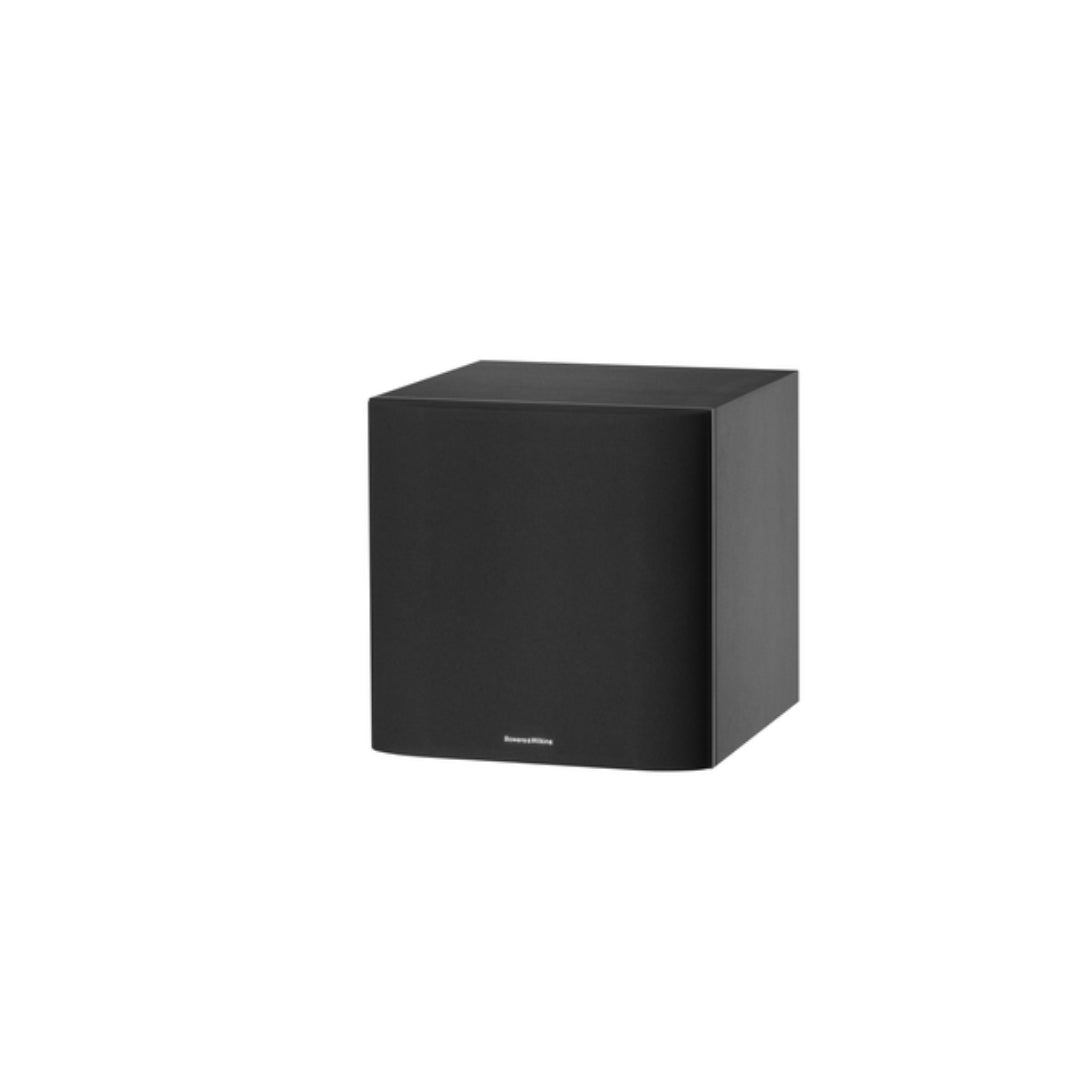

Bowers & Wilkins ASW610 Subwoofer

The Bowers & Wilkins ASW610 is a powerful 10" subwoofer that delivers deep, accurate bass for your home theater or music system. Its long-throw driver and rigid cabinet construction ensure clean, impactful low frequencies, while the 200W Class D amplifier provides ample power.

Key features:

• 10" paper/Kevlar® cone driver for deep, accurate bass
• 200W Class D amplifier for plenty of power
• Rigid cabinet construction minimizes vibration for clean bass
• Compact size fits easily into any room

Rich, room-filling bass

The ASW610's long-throw driver can move large volumes of air, producing deep, powerful bass that you can feel as well as hear. Whether you're watching an action movie or listening to your favorite music, the ASW610 will add a new level of immersion to your listening experience.

Clean and accurate sound

The ASW610's rigid cabinet construction minimizes vibration, ensuring that the bass you hear is clean and accurate. The paper/Kevlar® cone driver is also very light and stiff, which helps to reduce distortion.

Compact and versatile

Despite its powerful performance, the ASW610 is relatively compact, making it easy to find a place for it in your room. It also has a variety of connection options, so you can easily integrate it with your existing home theater or stereo system.

Bowers & Wilkins ASW610 Subwoofer Specifications

Net Weight:

• 12.5kg (27.6 lb)

Dimensions:

• Height:
  • 310mm (12.2 in) not including feet or spikes
  • 322mm (12.7in) including feet
  • 338mm (13.3in) including spikes
• Width: 310mm (12.2 in)
• Depth:
  • 347mm (13.66in) not including grilles
  • 375mm (14.8 in) including grilles and controls

Technical Details:

• Drive Units:
  • ø250mm (10 in) Paper / Aramid fibre cone long-throw
• Frequency Response:
  • ±3dB 27Hz – 40 / 140Hz adjustable (EQ at A)
• Technical Features:
  • Input Level (Line In)
  • Input Level (Speaker In)
  • Low-pass Filter Frequency (Line In Only)
  • Low-pass Filter Bypass
  • Bass Extension
  • Bass Roll-off Alignment
  • Auto Sense On/Standby
  • Phase Switch

Description:

• Active closed-box subwoofer system

Frequency Range:

• -6dB at 20Hz and 25 / 140Hz adjustable (EQ at A)

Inputs:

• Line In (RCA Phono)
• Speaker In (Binding Post)
• 12v Trigger (3.5mm Jack)

Low-pass Filter:

• Active 4th-order, variable cut-off frequency

Amplifier Power Output:

• 200W

Power Consumption:

• 40W / 0.5W standby

Input Impedance:

• 33kΩ

Signal/Noise:

• 90dB

Bass Extension:

• -6dB at 20Hz (Position A)
• -6dB at 25Hz (Position B)
• -6dB at 30Hz (Position C)
