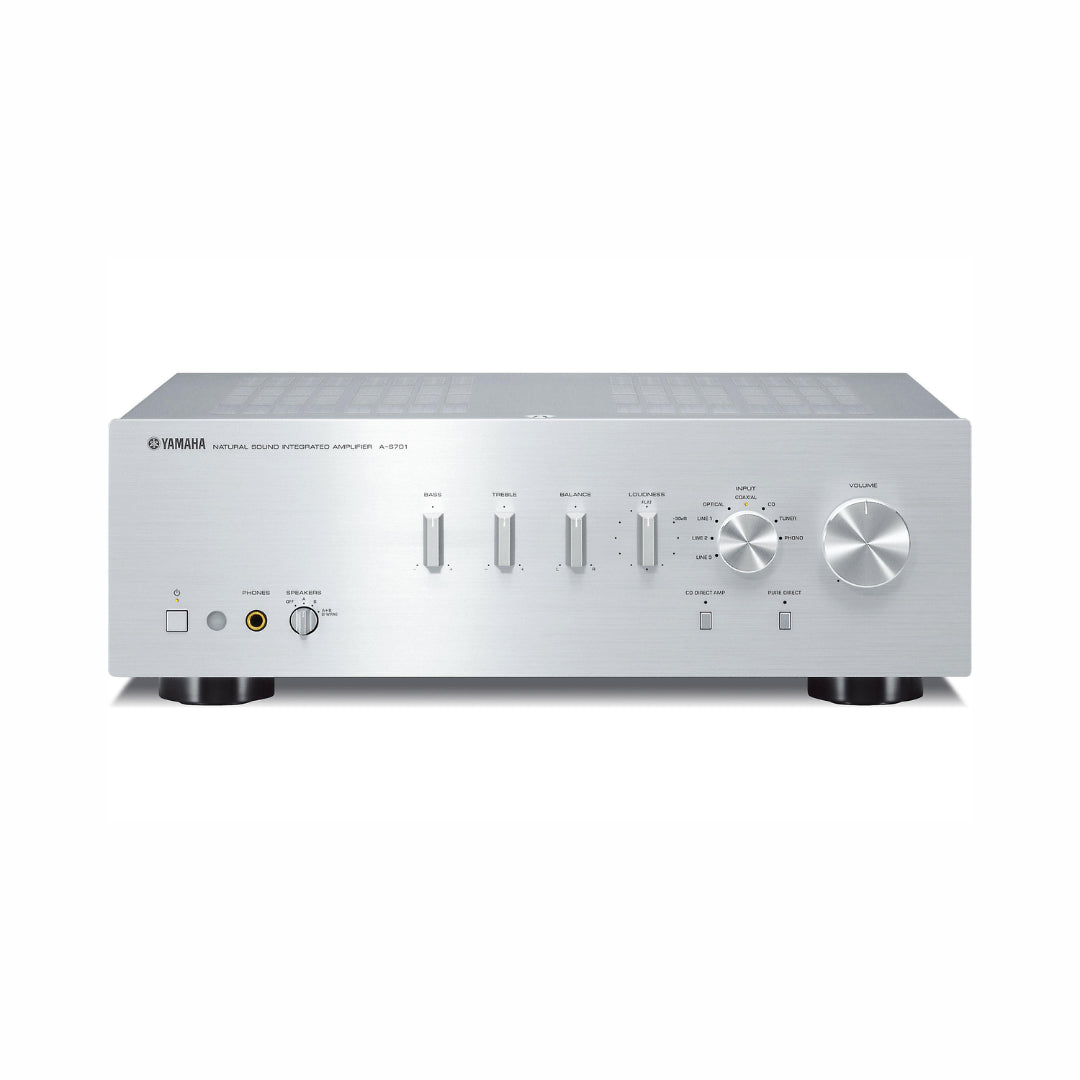

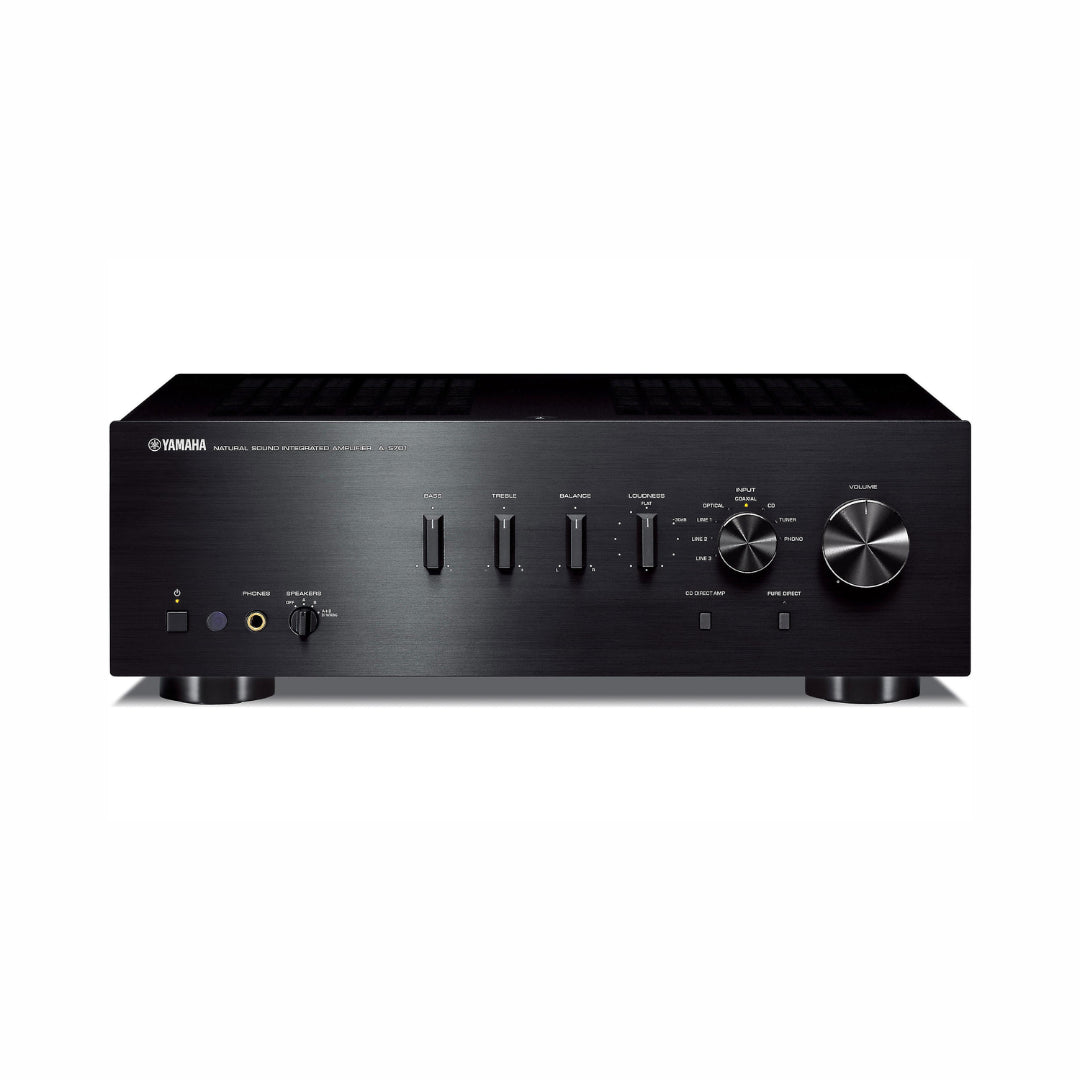

A-S701 Integrated Amplifier

The A-S701 Integrated Amplifier offers exceptional sound quality and powerful drive capabilities. It combines analog and digital inputs for versatile connectivity.

Key Features:

• Power output: 100 W x 2 channels (20 Hz - 20 kHz)
• Digital audio inputs for TV and Blu-ray Disc™ player
• CD Direct Amplification and Pure Direct mode
• ToP-ART (Total Purity Audio Reproduction Technology) and high-quality components
• I/O direct symmetrical design
• ART (Anti-Resonance and Tough) Base for vibration damping
• Custom-made power transformer, 12,000uF block capacitors, and aluminum heat sinks
• Gold-plated speaker terminals and RCA terminals
• Sleek design with an aluminum front panel
• Continuously variable loudness control

High-Quality Circuit Design:

The A-S701 utilizes Yamaha's ToP-ART design, featuring a direct symmetrical layout from input to output. This design, along with the ART Base, ensures optimal sound reproduction with minimal noise and distortion. The amplifier's straight and symmetrical channel layout enhances signal purity. The ART Base and solid center bar provide rigidity and vibration damping, resulting in rich and musical audio reproduction.

Outstanding Audio Performance:

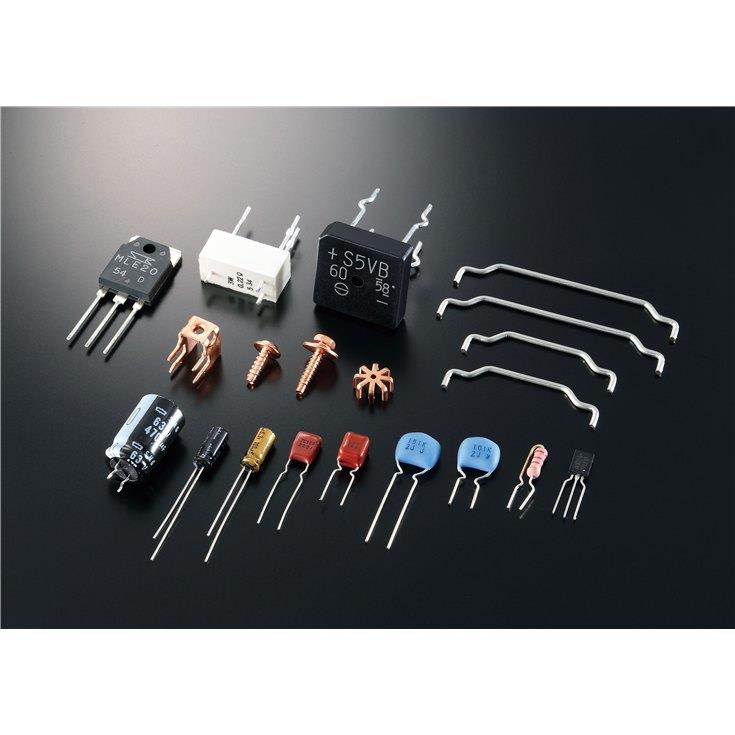

The A-S701 incorporates high-quality parts to handle demanding audio conditions. It includes a custom-made power transformer, block capacitors, speaker relays, and extruded aluminum heat sinks. Yamaha carefully selects and tests each component to ensure superior sound quality.

Crafted with Experience and Technological Expertise:

With over 125 years of experience as a musical instrument maker, Yamaha has a renowned reputation for Hi-Fi components. The A-S701 benefits from Yamaha's rich expertise and technological advancements. Built with the concept of "Natural Sound," this amplifier is meticulously designed to faithfully reproduce music as it was intended.

CD Direct Amplification and Pure Direct Mode:

CD Direct Amplification maximizes the signal-to-noise ratio when connected to the CD input. The Pure Direct mode ensures the shortest circuit route for music signals, bypassing unnecessary circuitry for the purest sound quality.

Continuously Variable Loudness Control:

The A-S701 features an analog loudness control that allows adjustment of the loudness effect, providing full tonal range at any volume level. This control compensates for the natural loss in the human ear at low volumes, enhancing the listening experience.

Gold-Plated Terminals:

To maintain high-quality connections and prevent signal loss, the A-S701 is equipped with gold-plated speaker and input terminals.

Digital Audio Input and Bluetooth Capability:

The amplifier includes digital audio inputs, allowing connection to a TV and a Blu-ray Disc player. These inputs preserve the audio signal in the digital domain for pure and dynamic sound reproduction. Additionally, the A-S701 is compatible with the YBA-11 Bluetooth Wireless Adapter (sold separately), enabling wireless music streaming from Bluetooth-compatible devices.

Multiple Speaker Configurations:

The A-S701 supports two separate speaker systems, allowing simultaneous playback in different rooms. The amplifier provides four terminals for easy switching between speaker pairs and sources.

Subwoofer and Phono Input:

A dedicated subwoofer terminal is included for increased bass output and improved overall sound quality. The A-S701 also features a phono moving magnet input terminal, enabling the connection of a turntable with an MM phono cartridge.

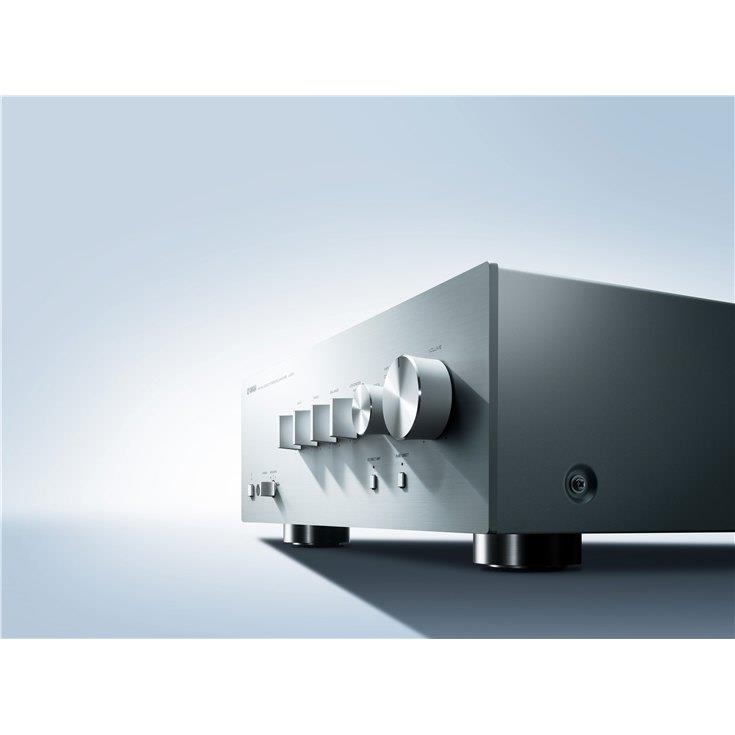

Simple and Sophisticated Design:

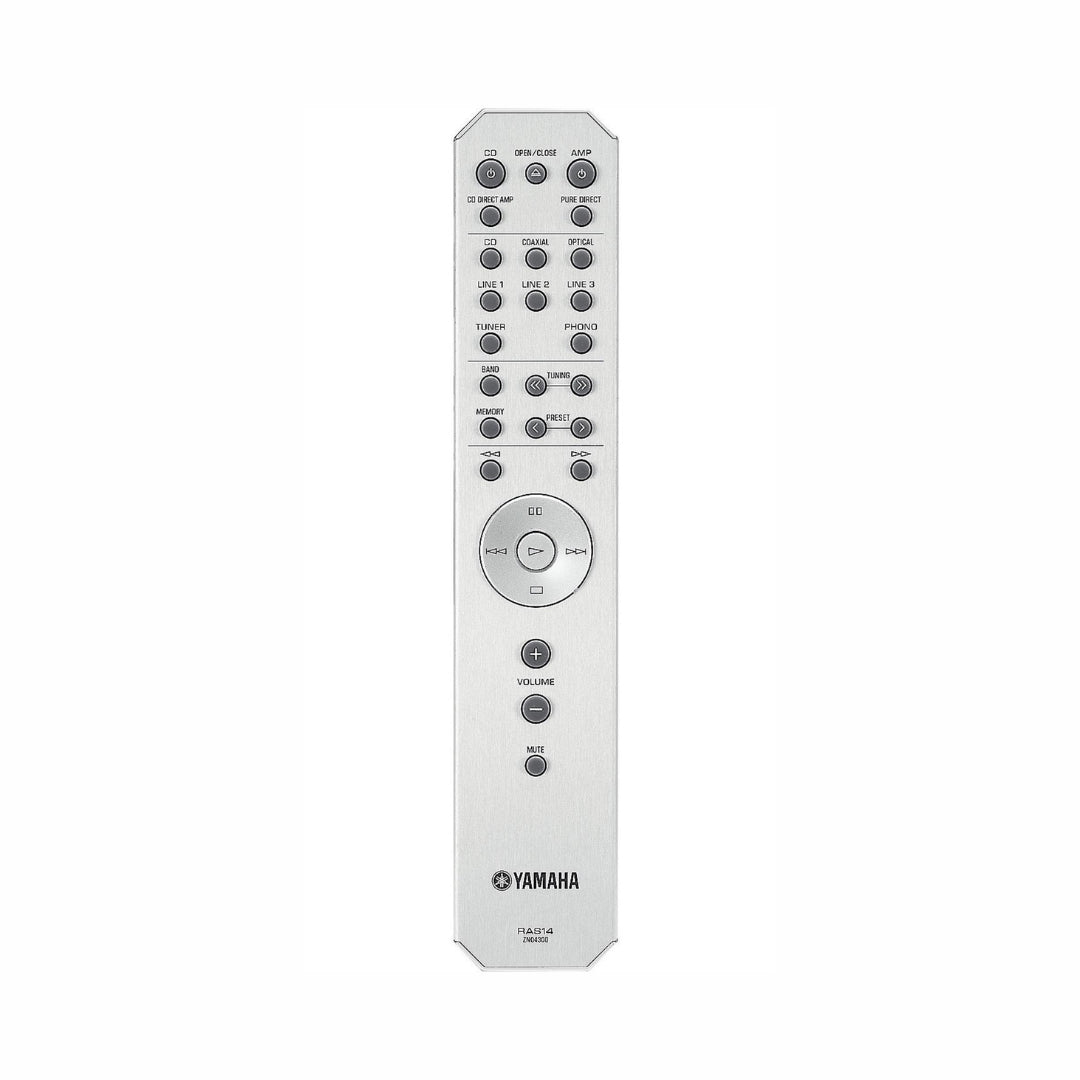

With a design inspired by Yamaha's Hi-Fi audio components, the A-S701 boasts a beautiful and unique appearance. The aluminum front panel features a textured silver hairline finish, while the layout ensures user-friendly operation. The remote control complements the amplifier's design and provides intuitive control over inputs, volume, and other functions.
