Description
OREI BK-401ARC: 4x1 HDMI Switch with ARC/eARC Audio Extraction

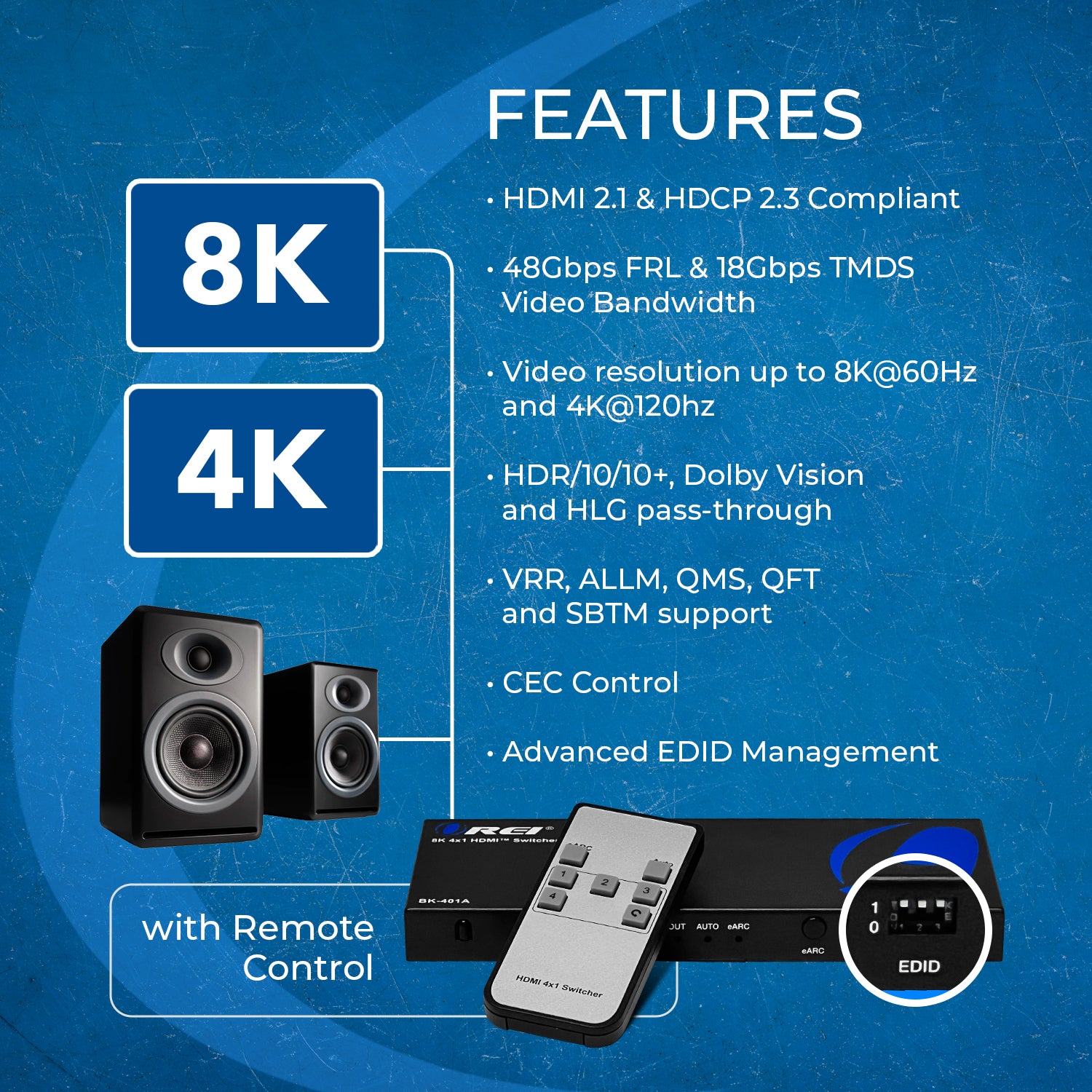

Key Features:
- HDMI 2.1 & HDCP 2.3 Compliant
- 48Gbps FRL & 18Gbps TMDS video Bandwidth
- Video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120hz 4:4:4 12bit
- HDR/10/10+, Dolby Vision and HLG pass-through
- VRR, ALLM, QMS, QFT and SBTM support
- CEC: Control the soundbar and input devices through the TV remote
- Advanced EDID Management
- Compact design and an easy plug and play setup
- Perfect for commercial and personal setups
The BK-401ARC HDMI Switch can take up to 4 media sources and allow you to connect them to a single display and switch between them with ease. The device supports video resolutions up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit. The device supports CEC control and eARC features. You can connect an eARC Soundbar to IN-1 and an eARC TV to the output to be able to extract audio from the TV’s internal apps. CEC allows you to control the connected soundbar and input devices through the TV’s remote. Also featured are 2 separate audio outputs for audio extraction if you do not have an eARC Soundbar. The BK-401ARC is the perfect device for a modern-day home theatre setup.
[shortdes]
- 4x1 Switch with eARC
- Resolutions up to 8K@60Hz 4:2:0
- CEC and EDID management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 4 × HDMI IN [Type A, 19-pin female] | |
| OUTPUT: | 1 × HDMI OUT [Type A, 19-pin female] | |
| 1 × OPTICAL [S/PDIF] | ||
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × SERVICE [USB Type C, Update port] |
PACKAGE CONTENTS
| 1x BK-401ARC |
| 1x IR Remote |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1 | We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: | 10 Feet |
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48Gbps FRL and 18Gbps TMDS |
| Video Resolutions: | Up to 8K@60Hz 4:2:0, 4K@60Hz, 2K@120Hz, 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | Yes |
| ARC: | Yes |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD |
| eARC Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD |
| Optical Audio Formats | LPCM 2.0CH/Dolby/DTS 5.1CH |
| Analog Audio Formats | LPCM 2.0CH |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 2.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 176mm / 6.92in | |
| Width: | 68mm / 2.67in | |
| Height: | 18mm / 0.7in | |
| Weight: | 315g / 11.11lb |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
