OREI HDS-401MV: 4K HDMI Quad Multi-viewer Switch 4x1 with VGA
Key Features:
- HDMI 1.4 & HDCP 1.4 Compliant
- Video resolution up to 4K@30Hz
- 10.2Gbps video bandwidth
- 4 In 1 Out Quad Multiviewer
- Features a VGA output which can be used simultaneously with HDMI
- VGA output supports up to 1920x1200@60Hz resolution
- Analog 3.5mm stereo output for audio extraction from any one input at a time
- 4 different multiview modes
- It can also be used a 4x1 HDMI Switch
- Control via front panel and the IR Remote
The OREI HDS-401MV is a seamless 4x1 quad multi-viewer switch, enabling the simultaneous display of 4 HDMI inputs on a single screen. Supporting resolutions up to 4K@30Hz and compliant with HDMI 1.4b HDCP 1.4 standards, it ensures high-quality viewing experiences. With a VGA output supporting resolutions of up to 1920x1200@60hz, it allows simultaneous usage alongside the HDMI output. Additionally, it features a 3.5mm Analog stereo output for audio extraction from one input at a time. It offers 4 different Multiview modes for different setups. Easily controllable via the front panel buttons and the included remote. Its compact design and plug-and-play setup make it an invaluable addition to both commercial and personal home theatre setups.
[shortdes]
- 4 In 1 Out Quad Multiviewer
- 4 different Multiview modes
- Analog output for audio extraction
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 4 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Jack] | ||
| 1 × VGA [VGA-D] | ||
| CONTROL: | 1 × Micro USB [Update port] |

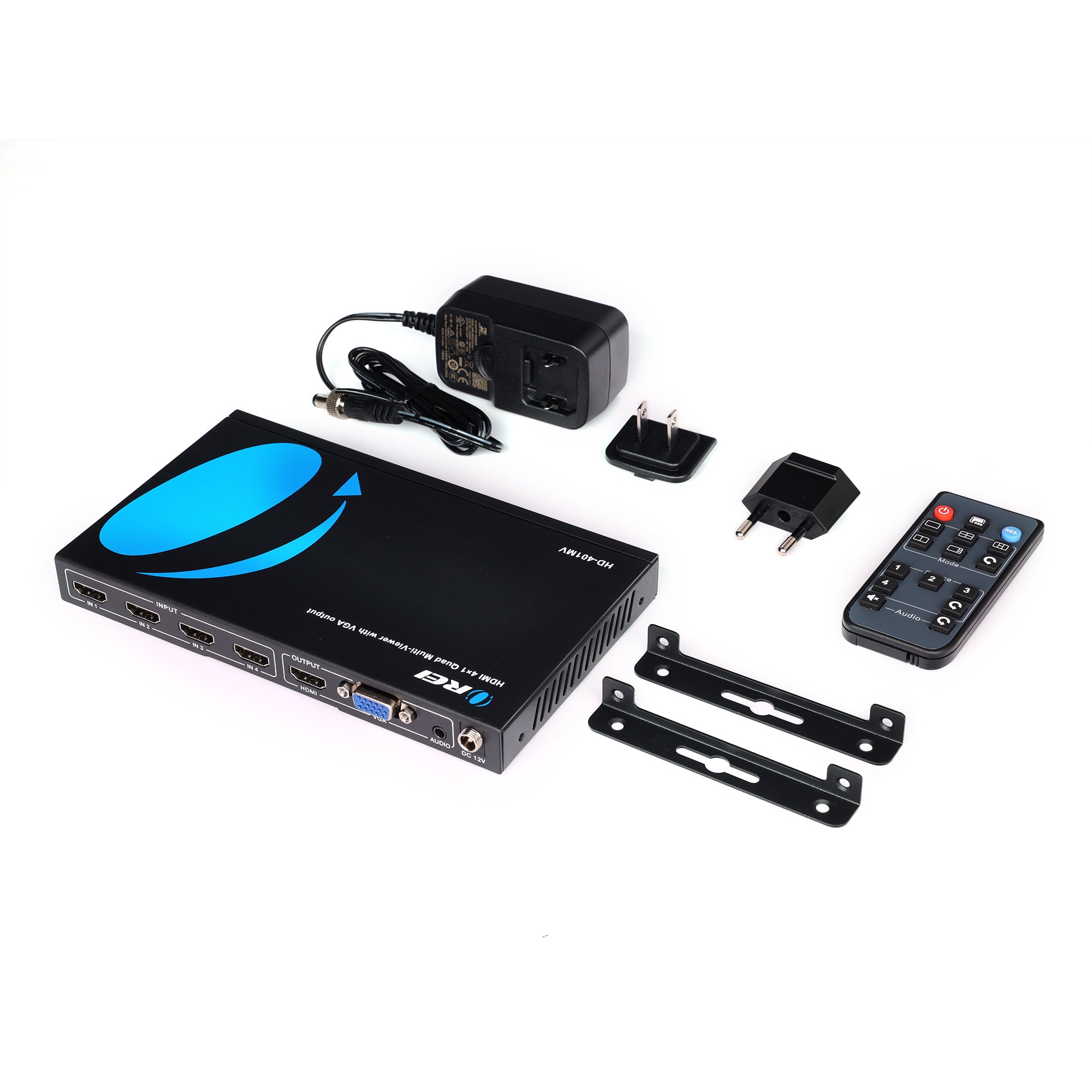

PACKAGE CONTENTS
| 1x HDS-401MV |
| 1x Remote Control |
| 2x Mounting brackets |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2 Gbps |
| Video Resolutions: | Up to 4K@30Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM 2 |
| Analog Audio Formats: | LPCM 2 |
COMPLIANCES
| HDMI Compliance | HDMI 1.4b |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | 7.68W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |
DIMENSIONS & WEIGHT
| Length: | 185mm / 7.28in | |
| Width: | 128mm / 5.04in | |
| Height: | 20mm / 0.79in | |
| Weight: | 595g / 1.31lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
