Description
OREI UHD-PRO 104: 4K 1x4 HDMI Splitter with Auto Downscale & EDID management
- HDMI 2.0 & HDCP 2.2 Compliant
- Video resolutions up to 4K@60Hz & 3D support
- 18Gbps video bandwidth
- Automatic Downscale feature to downscale 4K content to 1080p.
- Convenient & Easy EDID management through a switch
- DTS HD, Dolby TrueHD lossless digital audio compliant
- Duplicate content from a single media source to 4 displays
- On/Off Switch for easy control
- Compact & Lightweight Design

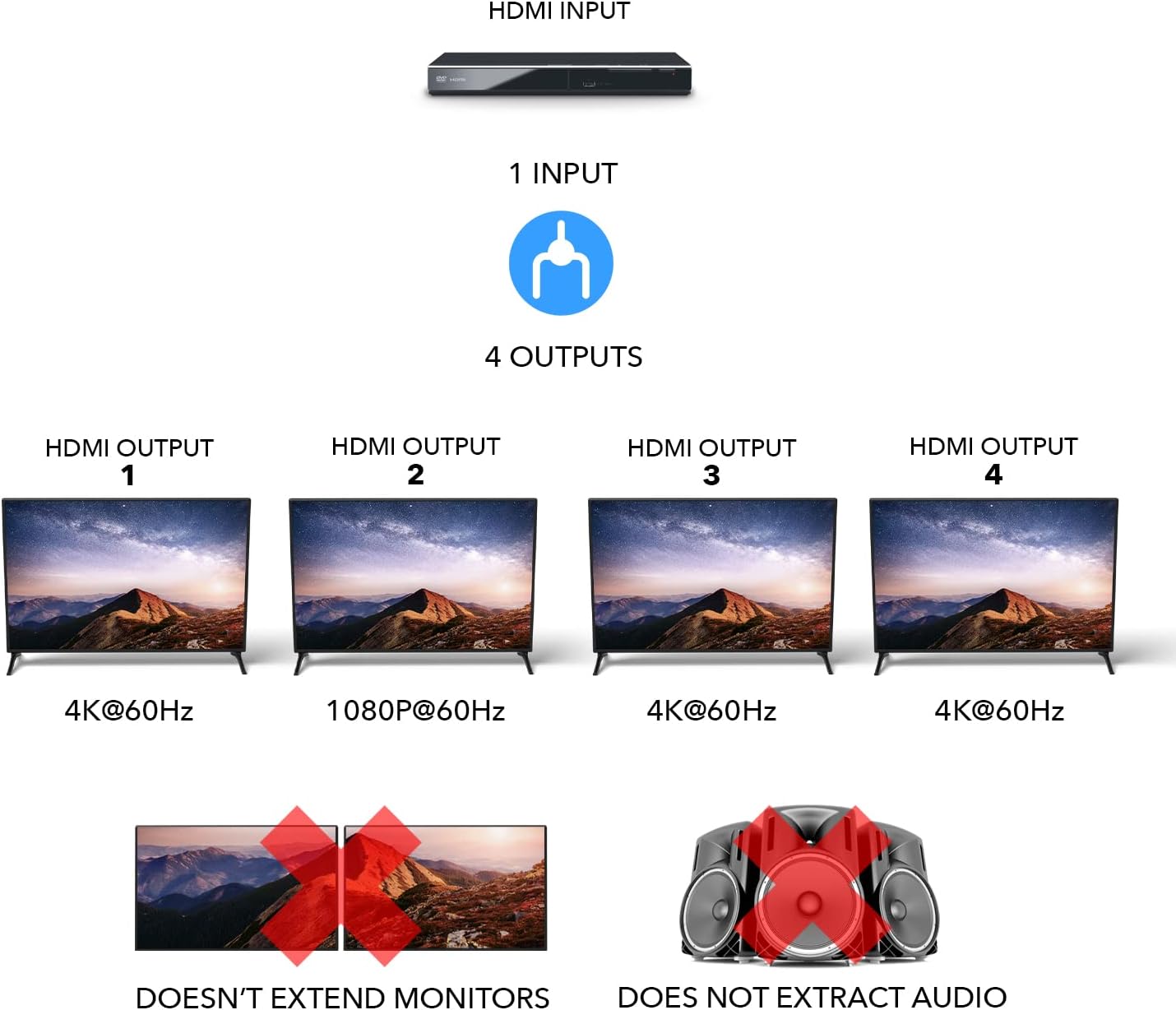

The UHD-PRO104 is a 4K 1 in 4 out HDMI Splitter that allows you to connect a single media source to 4 displays, duplicating the content on all screens. The device supports resolutions up to 4K@60Hz and is HDMI 2.0 & HDCP 2.2 compliant. This device is the perfect solution to watch content from a single media source on 4 displays at the same time. Moreover, the device also supports an auto-downscaling function. This allows you to connect 4K displays and 1080p displays at the same time, maintaining the 4K resolution on the 4K display and downscaling the media to 1080p to show on the 1080p display.
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] |
PACKAGE CONTENTS
| 1x UHD-PRO104 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | Yes |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM 2, 5.1, & 7.1CH, Dolby TrueHD, DTS-HD, DTS |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 3W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| DC 5V/0.6A |
DIMENSIONS & WEIGHT
| Length: | 152mm/5.98in | |
| Width: | 63mm/2.48in | |
| Height: | 20mm/0.79in | |
| Weight: | 102g/3.6oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
- 1 in 4 out HDMI splitter With Auto Downscale
- Video Resolutions up to 4K@60Hz
- Advanced EDID management
[/shortdes]
