Description
BK-927: 8K eARC HDMI Audio Extractor Dolby Atmos
Key Features:
- HDMI 2.1 and HDCP 2.3 compliant
- 48Gbps FRL and 18Gbps TMDS video bandwidth
- Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- VRR, ALLM, QMS, QFT, SBTM support
- HDR/10/10+, Dolby Vision, and HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos, and DTS-HD Master, DTS:X Audio pass-through from HDMI

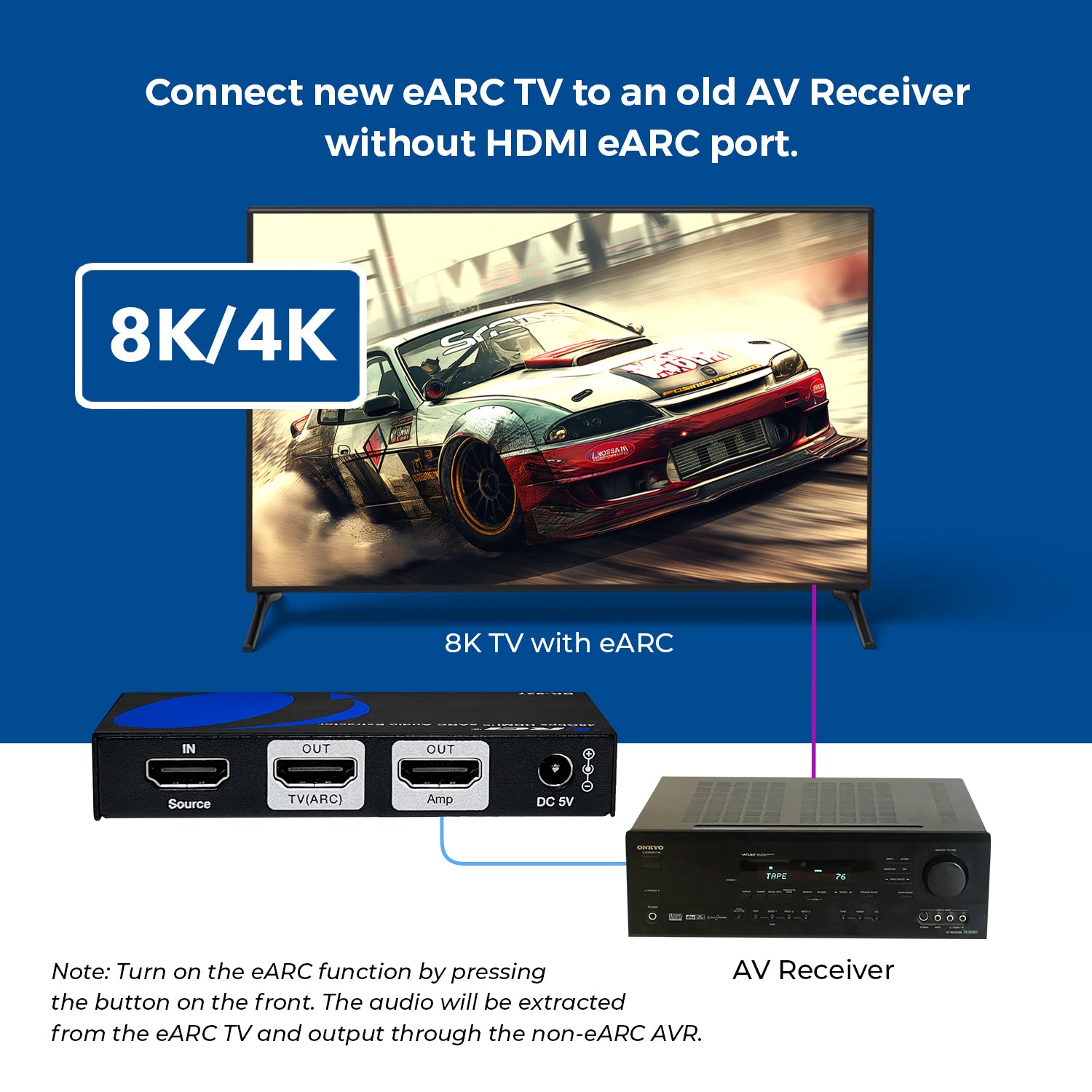

- ARC Audio Extraction from an ARC/eARC TV
- Features CEC control
- Advanced EDID management
- Compact design and easy installation
The BK-927 HDMI eARC Audio Extractor seamlessly extracts audio signals from your HDMI source or an ARC/eARC TV and delivers them to your AV receiver via HDMI. Support for 48Gbps video bandwidth, this device complies with both HDMI 2.1 and HDCP 2.3 standards, ensuring compatibility with your latest devices. Enjoy stunning 8K@60Hz visuals while experiencing rich, immersive audio. The BK-927 features EDID management and also supports features such as VRR, ALLM & FVA. This device bridges the gap between modern HDMI technology and your older audio amplifier, offering a simple solution for elevating your audio experience. Plus, it supports CEC control from your TV to both the source and amplifier, streamlining your home theatre setup. Perfect for commercial and personal setups.
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] For eARC TV | |
| 1 × HDMI [Type A, 19-pin female] For AV receiver | ||
| CONTROL: | 1 × SERVICE [USB Type C, Update port] |
PACKAGE CONTENTS
| 1x BK-927 |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1 | We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz 4:2:0: | 6.6 Feet |
| 4K@60Hz 4:4:4: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48 Gbps FRL & 18 Gbps TMDS |
| Video Resolutions: | Up to 8K@60Hz 4:2:0, 4K@60Hz, 2K@120Hz, 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | Yes |
| ARC: | Yes |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
LOOP-OUT / LOCAL PORTS
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS; SD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 3.38W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 95mm / 3.74in | |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 178g / 6.28oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
HDMI Audio Extractor Non-ARC HDMI output
· Video resolutions up to 8K@30Hz or 4K@120Hz
· HDMI audio out formats up to Dolby Atmos or DTS:X
[/shortdes]
