Description
OREI UHD-401: Ultra HD 4x1 HDMI switch
- HDMI 2.0 and HDCP 2.2 compliant
- 18Gbps video bandwidth
- Video resolutions up to 4K@60Hz and 2k@60Hz
- HDR10 pass-through for enhanced color quality
- LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio pass-through from HDMI
- 4 in 1 out HDMI switch with remote control
- Built-in cable and retiming driver
- Compact design for easy and flexible installation
- Plug and play installation
Few sample applications:

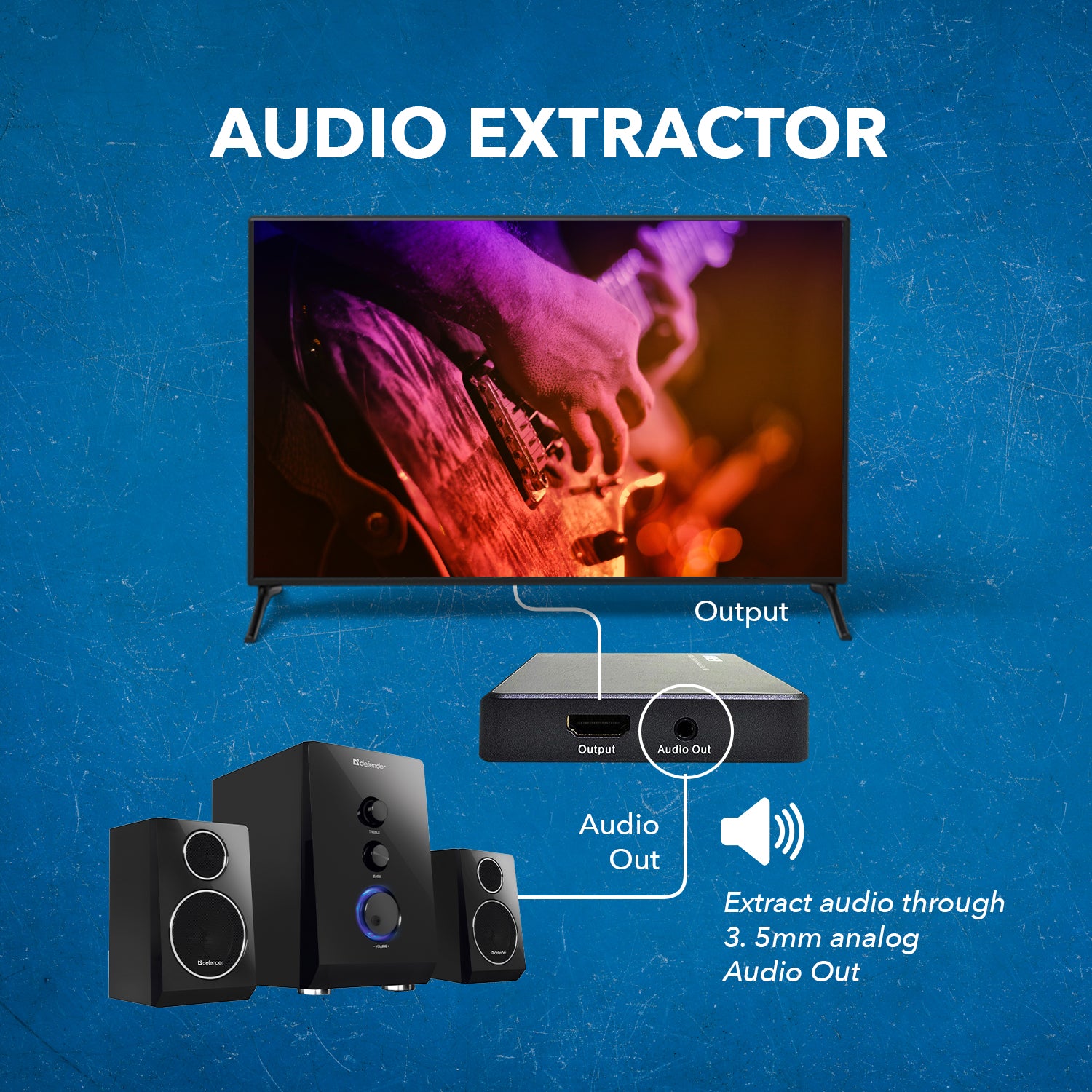

The OREI UHD-401 4x1 Ultra HD HDMI 2.0 Switch is a 4 port for your Cable receiver, DirecTV, Gaming Console, Playstation, Nintendo Switch, and Home Theater Setup. It supports 4 HDMI inputs and 1 HDMI output, allowing for HDMI 2.0 and HDCP 2.2, along with 4K Ultra HD and compatibility on all HDMI. Also has a 3.5MM Audio Extract.
[shortdes]
- 4 in-1 out HDMI Switch With Audio extraction
- Resolutions up to 4K@60Hz and 2k@60Hz
- 10-bit HDR pass-through
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 4 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] |
PACKAGE CONTENTS
| 1x UHD-401 HDMI Swithcer |
| 1x IR Remote Control |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 25 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2k@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio |
| L/R Audio Formats: | Analog Stereo 2CH |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 1W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 120.97mm / 4.76in | |
| Width: | 79.17mm / 3.12in | |
| Height: | 16mm / 0.63in | |
| Weight: | 195g / 6.88oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
