Description

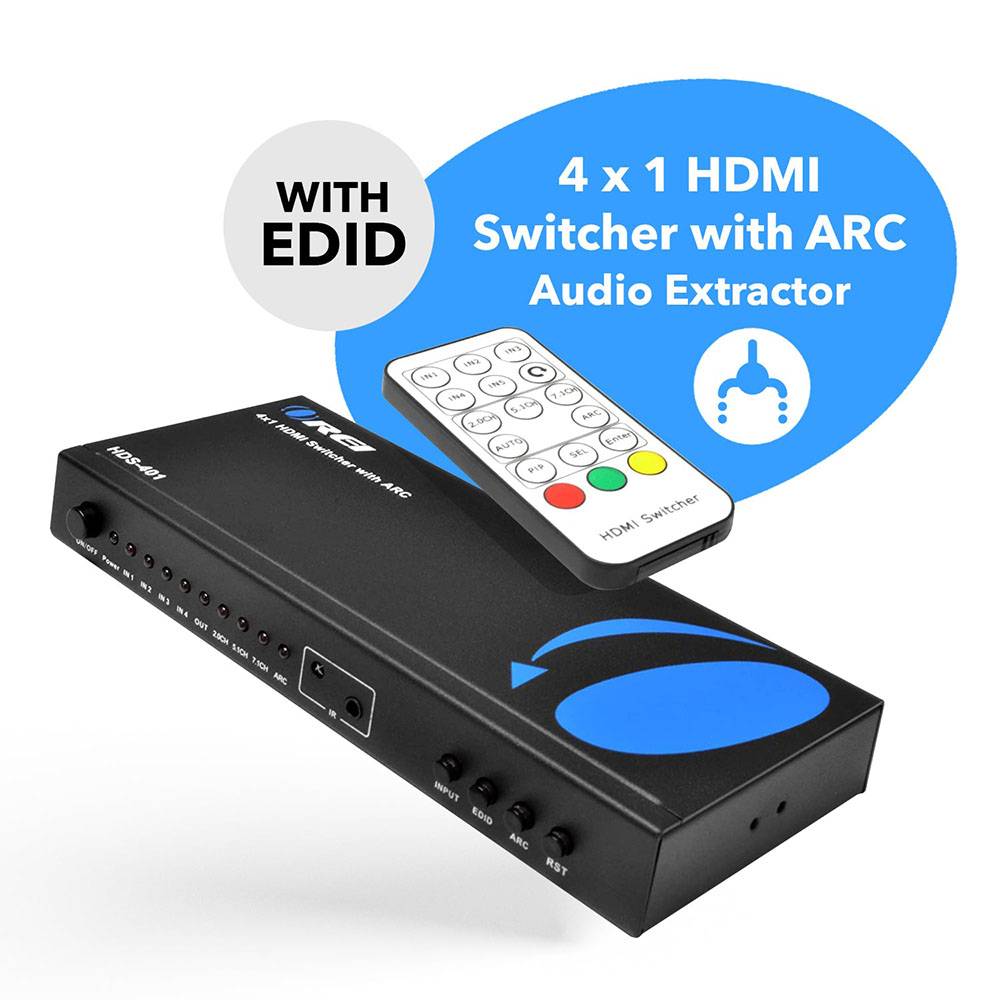

4K 4x1 Switch with ARC Audio Extractor
Key Features:
- 4 input and 1 output Multiplexed HDMI
- Suppors Audio Return Channel (ARC)
- Video resolutions up to 4Kx2K@30Hz
- Deep Color support 36/30/24-bit
- Audio EDID select function
- Supports CEC bypass on HDMI out
- Support digital audio format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
- A super wideband IR control system, the IR transport channel can be forward or backward
OREI HDS-401 4K x 2K HDMI 4 input into 1 output Switcher. It supports highest video resolution up to 4K x 2K at 30Hz), EDID bypass, full 3D and HDCP2.0 complaint. This HDMI provides a S/PDIF link and earphone to output the HDMI source audio. It supports PCM, Dolby True HD, DTS-HD Master Audio up to 2.1, 7.1 Ch. Digital and analog Audio output. Supports Audio Return Channel (ARC) through Optical Audio Out from a compatible ARC TV
[shortdes]
- 4 Inputs - 1 output HDMI switch
- Video resolution up to 4Kx2K@30Hz
- Supports Audio Extraction
- Compliance: HDMI v1.4 - HDCP 2.0
[/shortdes]
[tab1]
FAQs
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
Yes, the included power adapter does support 220V
[/tab1] [tab]
AUDIO AND VIDEO
| Input Ports: | 4 × HDMI Type A(Female type) |
| Output Ports: | 1 × HDMI Type A(Female type) |
| Video Bandwidth: | 300MHz/10.2 Gbps |
| Video Resolution: | 480i ~1080p50/60, 4Kx2K@24/30, VGA~UXGA |
| Digital Audio Formats: | DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI v1.4 |
| HDCP Compliance | HDCP 2.0 |
POWER
| Power Supply: | 5 V/1A DC (US/EU standards, CE/FCC/UL certified) |
| Power Consumption: | 1.5 W |
CONTROL
| CEC: | Pass through |
ENVIRONMENTAL
| Operating Temperature: | 0 °C~40 °C/ 32 °F~104 °F |
| Storage Temperature: | −20 °C ~ 60 °C/−4 °F ~140 °F |
| Relative Humidity: | 20~90 % RH (non-condensing) |
DIMENSIONS & WEIGHT
| Height: | 26 mm |
| Width: | 82 mm |
| Depth: | 190 mm |
| Weight: | 430g |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × HDS-401 HDMI Switcher |
| 1 × 5V/1A DC Power Adapter |
| 1 × Remote Control |
| 1 × 38KHz IR Receiver |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
