Description
OREI HDS-402MV: 4K@30Hz HDMI Matrix Multiviewer Switch w/ RS-232 Control
Key Features:
- HDMI 1.4 & HDCP 1.4 Compliant
- 4 In 2 Out Matrix w/ Multiviewer functionality
- Video resolutions up to 4K@30Hz
- Features seamless switching
- Multi-resolution output
- Built-in Scaler to upscale and downscale resolution
- Features Aspect ratio change and PIP functions
- Control via front panel, IR Remote and RS-232
The HDS-402MV HDMI Matrix features seamless switching between 4 Input sources and 2 output devices. Along with seamless switching, the device also features Multiview functionality. It is HDMI 1.4 & HDCP 1.4 compliant and supports resolutions up to 4K@30Hz. With 5 different Multiview modes, you can display any 2 or 4 sources at once on one of the outputs. The device supports PIP view with the ability to set the PIP window to any corner of the screen. The power-off memory function retains the last setup when the device is restarted. Features versatile control through the front panel, the included remote, or RS-232. The HDS-402MV is the perfect device for various security and multimedia applications.
[shortdes]
- 4 In 2 Out Matrix w/ Multiviewer functionality
- Resolutions up to 4K@30Hz
- Features Aspect ratio change and PIP functions
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 4 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 × Stereo L/R [3.5mm Jack] | ||
| 1 × TOSLINK [S/PDIF] | ||
| CONTROL: | 1 × Upgrade [Micro-USB] |
PACKAGE CONTENTS
| 1x HDS-402MV |
| 1x Remote Control |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2 Gbps |
| Video Resolutions: | Up to 4K@30Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | Yes |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | Yes |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM/AC3/DTS |
| Optical Audio Formats: | PCM 5.1CH |
| Analog Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | 2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |

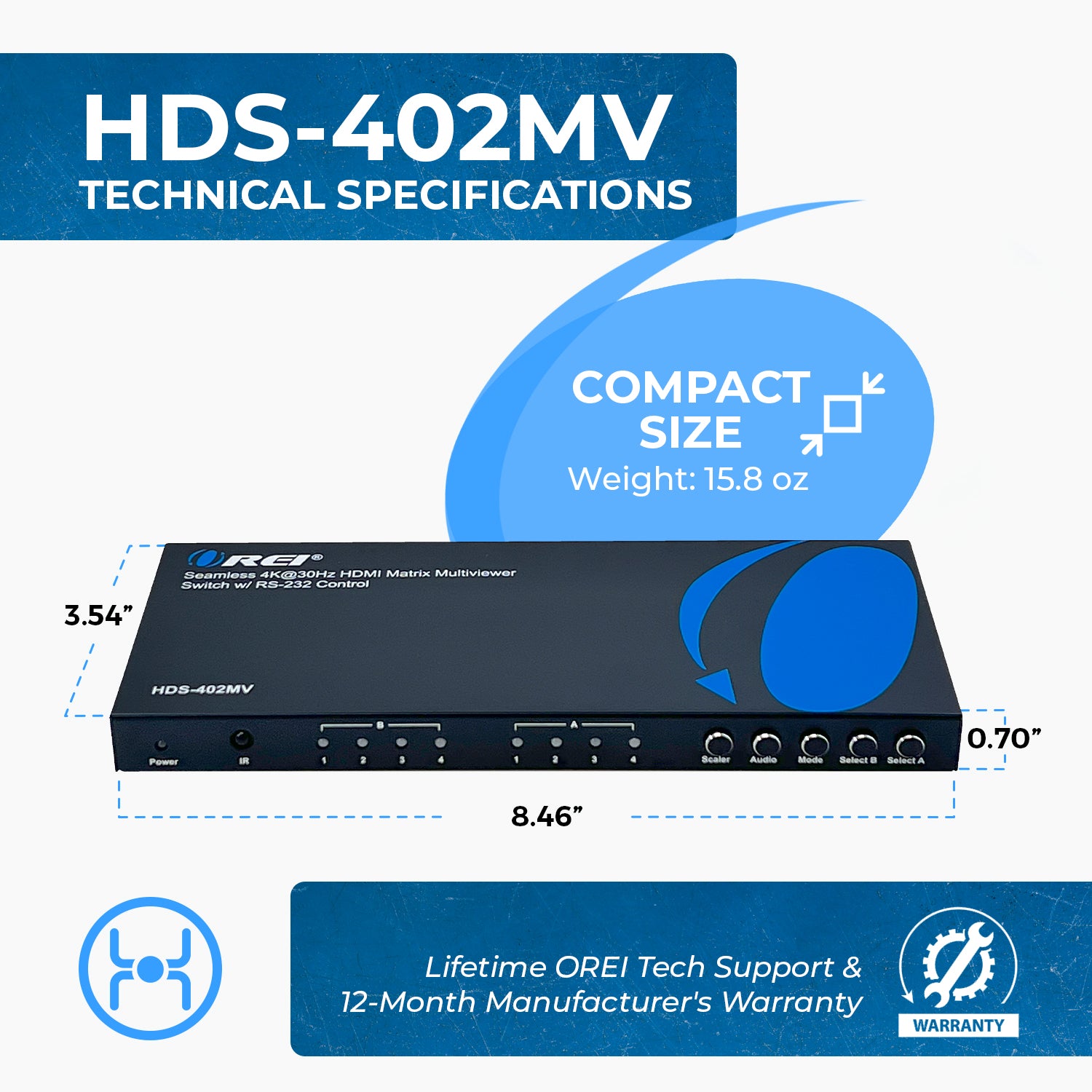

DIMENSIONS & WEIGHT
| Length: | 215mm / 8.47in | |
| Width: | 90mm / 3.54in | |
| Height: | 18mm / 0.71in | |
| Weight: | 450g / 15.87oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
