Description
UHD-EX120C-K: 4K@120HZ HDMI EXTENDER OVER CAT6 WITH USB C UPTO 82 FEET
- HDMI 2.0 & HDCP 2.2 compliant
- Video resolution up to 4K@120Hz
- 18Gbps video bandwidth
- 4K@120Hz transmission up to 82 feet and 4K@60hz up to 196 feet using CAT 6/7 cable
- Type C input to connect to a laptop
- HDR 10 support
- Only the Receiver unit requires power
- Compact design and plug-and-play setup
- Ideal for presentations and digital signage
The UHD-EX120C-K is a USB C to HDMI Extender that transmits a media signal from a laptop or PC to an HDMI display over ethernet, reaching distances of up to 196 feet at 4K@60Hz. It is HDMI 2.0 and HDCP 2.2 compliant, with video resolutions up to 4K@120Hz over 82 feet. Features 18Gbps video bandwidth with HDR10 support. Only the Receiver unit requires power. This extender is perfect for professional applications like presentations, digital signage, and more.
[shortdes]
- HDMI 2.0 & HDCP 2.2
- Extends 4K@120Hz Upto 82 ft and 4K@60Hz Upto 196 ft
- Type C input
[/shortdes]
[tab]
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x Micro USB cable |
| 1x User manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@120Hz: | 82 feet |
| 4K@60Hz: | 196 feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@120Hz |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| Audio formats : | PCM, DTS, Dolby |
| HDR10: | Supported |
| HDMI 3D: | Supported |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2, HDCP 1.4 |
POWER
| Power Consumption: | TX ≤ 3W & RX ≤ 3W | |
| Voltage: | TX: Power by the signal source | |
| RX: DC 5V500mA |

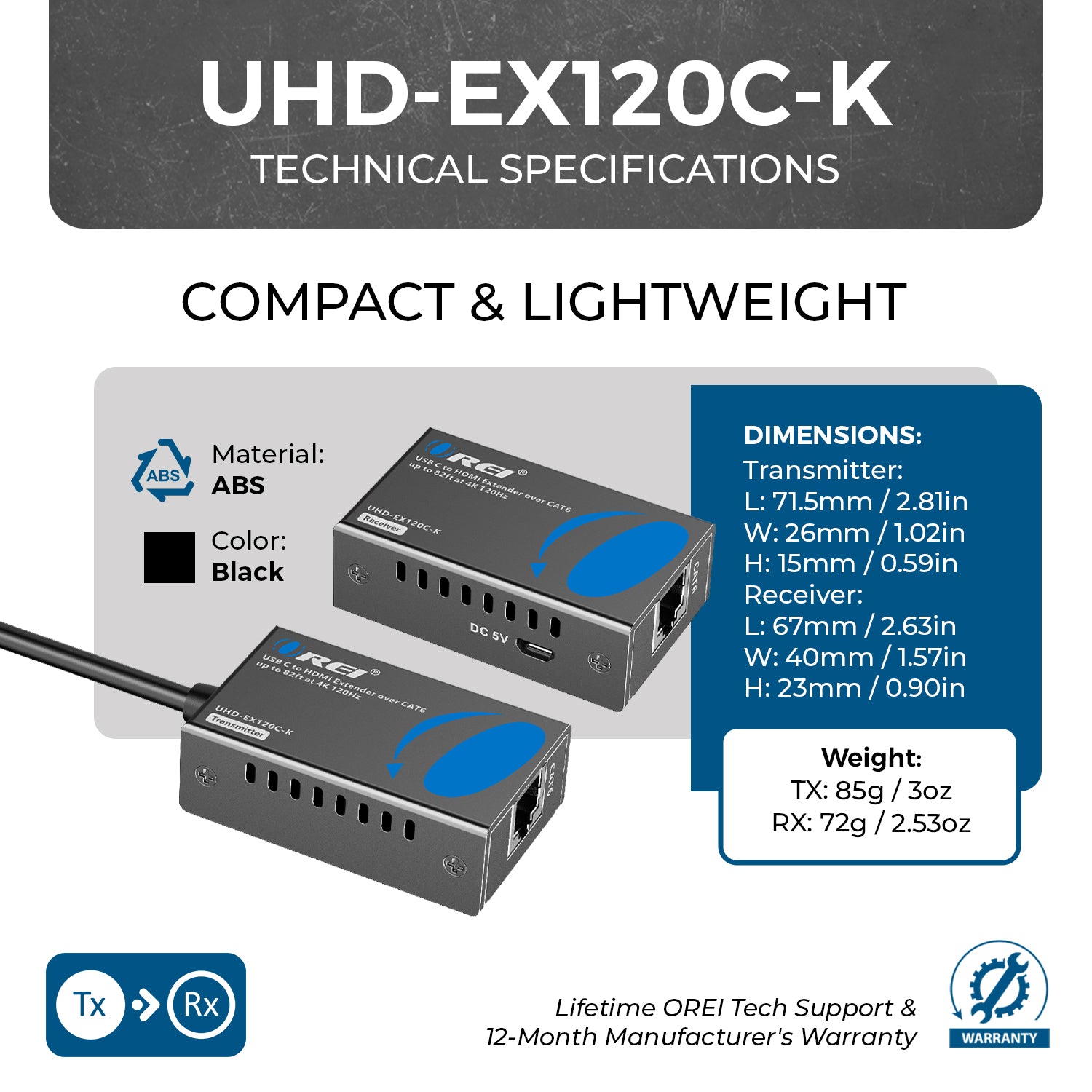

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 71.5mm / 2.81in |
| Width: | 26mm / 1.02in | |
| Height: | 15mm / 0.59in | |
| Weight: | 85g / 3oz | |
| Receiver: | Length: | 67mm / 2.63in |
| Width: | 40mm / 1.57in | |
| Height: | 23mm / 0.90in | |
| Weight: | 72g / 2.53oz |
PROPERTIES
| Color: | Black |
| Housing: | ABS |
OPERATING ENVIRONMENT
| Working temperature: | -20~55℃ |
| Storage temperature: | -30~60℃ |
| Humidity: | 0~90%RH (no condensation)/td> |
| ESD protection: | 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
