Description

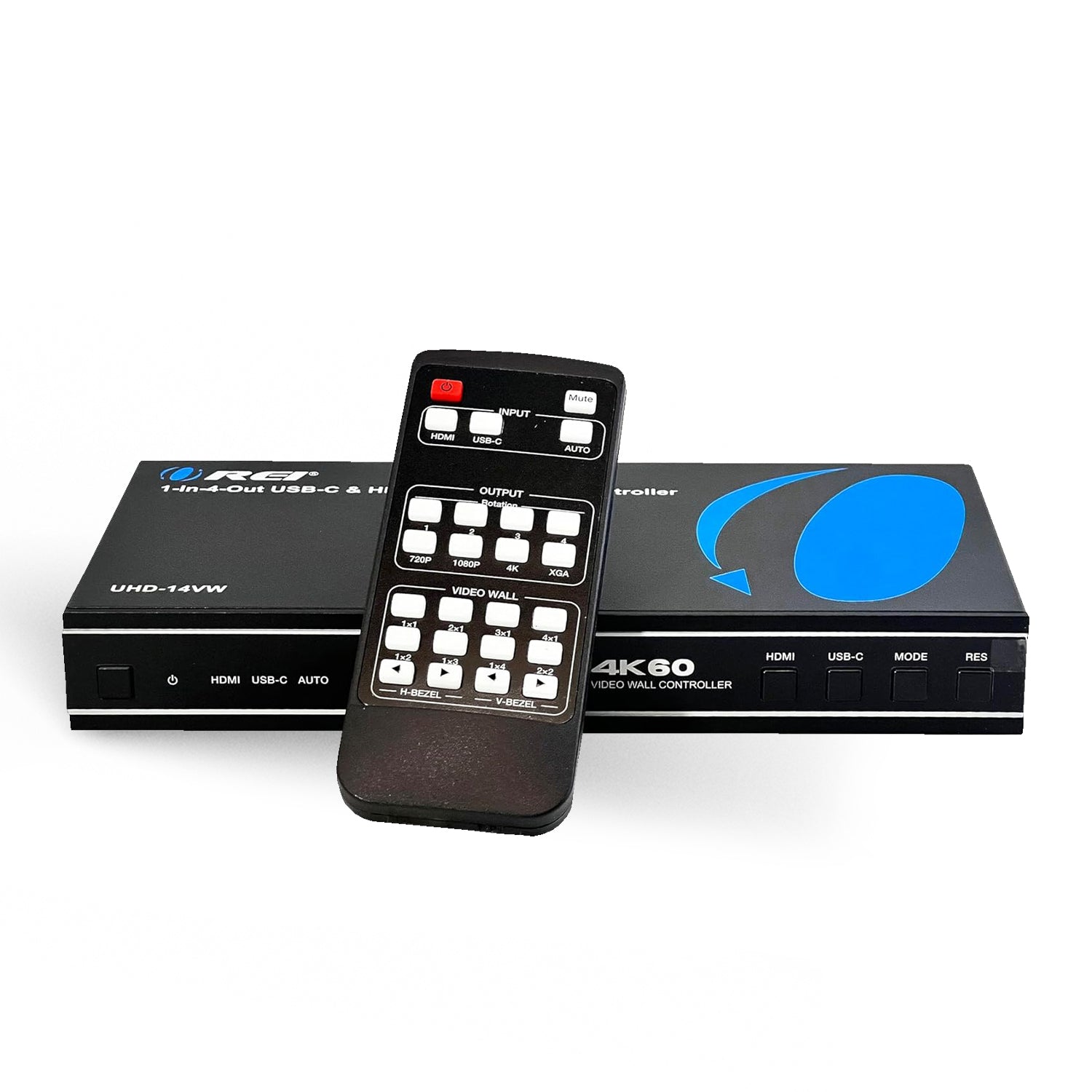

UHD-14VW: HDMI 2x2 Video Wall Controller with UBS-C input
Key Features:
- HDMI 2.0, HDCP 2.2 & DP 1.2a compliant
- USB-C Input for wider compatibility
- Video resolutions up to 4K@60Hz
- Audio extraction through Optical and L/R outputs
- 8 different Video wall modes
- Features 180-degree image rotation
- Bezel adjustment and EDID management
- Control via included remote, RS-232, or front panel
- Plug & Play setup
The UHD-14VW 1-In-4-Out Video Wall Controller is designed to take a single input and distribute it across 4 displays. The device features an HDMI and a USB-C input to connect to your media source. It supports resolutions up to 4K@60Hz 4:4:4. The device can take a media source and spread it across 4 displays creating a 2x2 Video wall. The device also features various other video wall modes such as 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, and 1x4. It also includes an Optical and a 3.5MM output for audio extraction. It can be controlled easily via the buttons on the front, the included remote or RS-232 commands.
[shortdes]
- 1x4 Video wall controller
- Resolutions up to 4K@60Hz
- Features 180-degree rotation, bezel management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × USB [Type C, 24-pin female] | ||
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
| 1 × S/PDIF [Optical Audio Jack] | ||
| 1 × L/R OUT [3.5mm, Stereo Mini-jack] | ||
| CONTROL: | 1 × RS-232 [3pin phoenix connector] | |
| 1 × IR EXT [3.5mm, Stereo Mini-jack] |
PACKAGE CONTENTS
| 1x UHD-14VW |
| 1x IR Remote |
| 1x IR Receiver Cable |
| 1x RS-232 3-pin Phoenix connector |
| 4x Screw (KM3*4) |
| 2x Mounting Brackets |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4K@60Hz 4:4:4 |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | Yes |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 |
| Optical Audio Formats: | Dolby Digital/plus, DTS 5.1, PCM 2.0 |
| Analog Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 5.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |
DIMENSIONS & WEIGHT
| Length: | 220mm / 8.66in | |
| Width: | 100mm / 3.94in | |
| Height: | 30mm / 1.18in | |
| Weight: | 590g / 1.3lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
