Description

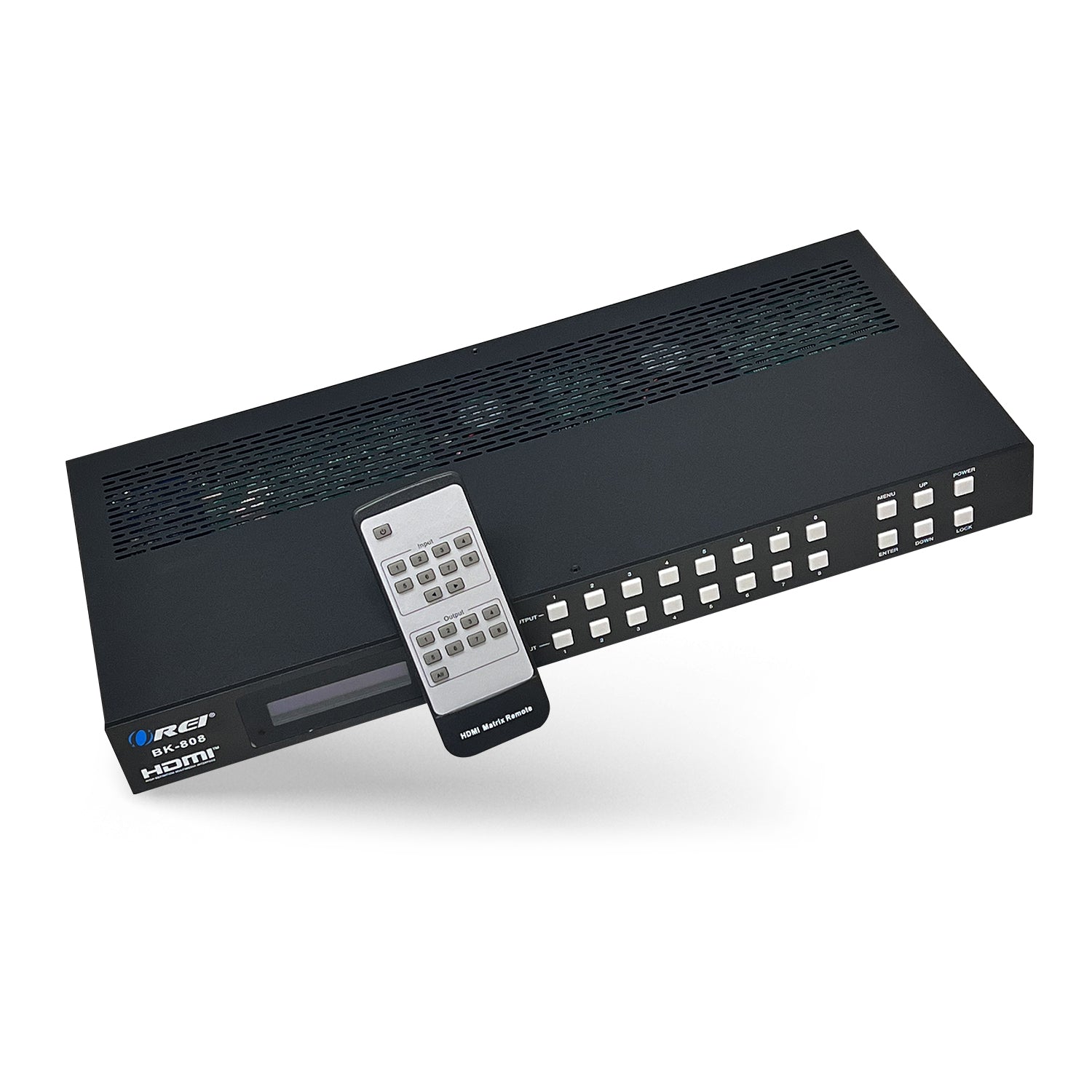

BK-808: 8K 8x8 HDMI Matrix Switch With Audio Extraction
Key Features:
- HDMI 2.1 & HDCP 2.3 compliant
- Video resolutions up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4 and 4K@120Hz 4:4:4
- 48Gbps video bandwidth
- 8 × HDMI inputs, that can be independently routed to 8 × HDMI outputs
- HDR/10/10+, and Dolby Vision pass-through
- Downscaling support for 8K->4K or 8K/4K->1080p, for each output port
- VRR, ALLM, QMS, QFT, and SBTM are supported
- Features Optical and balanced analog audio outputs for Audio Extraction
- Advanced EDID management
- Control via front panel buttons, IR remote, RS-232, and Web GUI
- Robust built and an easy plug and play installation
- Perfect for commercial and personal setups
The BK-808 is an 8 In 8 Out HDMI Matrix designed for switching or splitting between various sources and displays. It supports video resolutions up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit, with a video bandwidth of up to 48Gbps. The device includes Optical and Analog audio outputs for audio extraction and can be controlled via an included remote, front panel buttons, RS-232, or TCP/IP commands. It offers downscaling options, allowing you to downscale 8K to 4K or 8K/4K to 1080p on each output port. Additionally, the BK-808 supports HDMI 2.1 features like VRR, ALLM, QFT, QMS, and SBTM, ensuring advanced compatibility with modern displays. Robust build and easy plug-and-play installation. Perfect for both commercial and personal setups.
[shortdes]
- 8 in 8 out HDMI Matrix Switch with Audio Extractor, HDR & downscaling
- Resolutions up to 4K@120Hz 4:4:4, 8K@30Hz 4:4:4 or 8K@60Hz 4:2:0
- ARC Audio extraction with output via Optical and L/R ports
[/shortdes]
[tab]

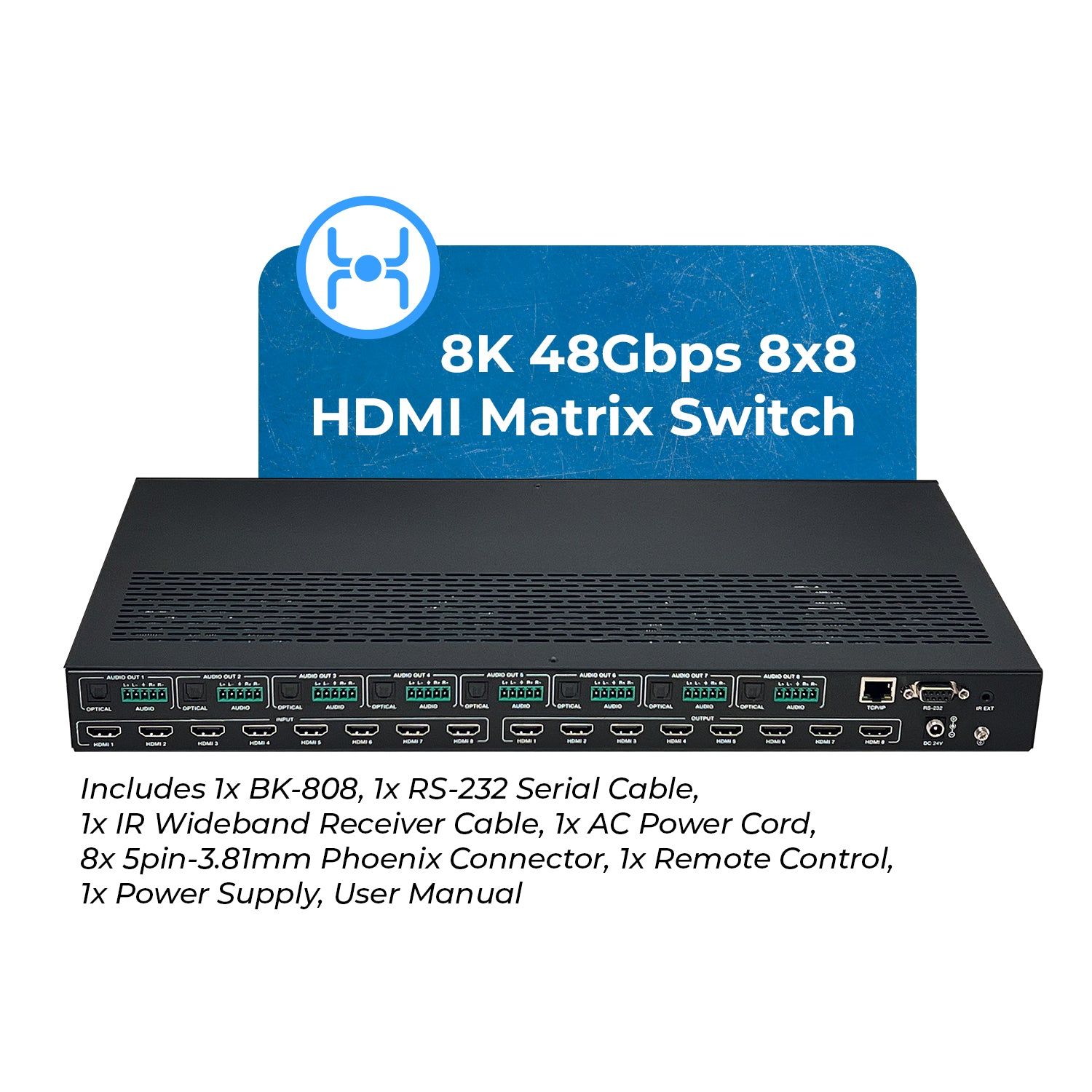

CONNECTIVITY
| INPUT: | 8 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 9 × HDMI [Type A, 19-pin female] | |
| 8x S/PDIF (Optical) | ||
| 8 × L/R Audio [5-pin Phoenix connector] | ||
| CONTROL: | 1 × TCP/IP [RJ45] | |
| 1 × IR EXT [3.5mm, Stereo Mini-jack] | ||
| 1 × RS-232 [DB-9 Connector] |
PACKAGE CONTENTS
| 1x BK-808 HDMI Matrix Switch with Audio Extraction |
| 1x Power Adapter |
| 1x IR Remote Control |
| 1x IR Receiver cable |
| 1x AC Power cord |
| 1x RS-232 Serial Cable |
| 8x 5-Pin Phoenix connector |
| 8x Machine screw |
| 2x Mounting ears |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0 / 2.1 | We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@30Hz: | 10 feet |
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48 Gbps |
| Video Resolutions: | Up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4 and 4K@120Hz 4:4:4, 4K@60Hz, 2K@120Hz, 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | Yes |
| ARC: | Yes |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | Yes |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | Yes |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Coaxial Audio Formats: | LPCM 2.0CH/Dolby/DTS 5.1CH |
| L/R Audio Formats: | LPCM 2CH |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 70W (Max) | |
| Power Supply: | Input: 100 - 240V 50/60Hz | |
| Output: DC 24V/3.75A |
DIMENSIONS & WEIGHT
| Length: | 440mm / 17.32in | |
| Width: | 203mm / 8in | |
| Height: | 44.5mm / 1.75in | |
| Weight: | 2.94kg / 6.48lb |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
Yes, the included power adapter does support 220V
Please email us on [email protected]
[/tab1]
